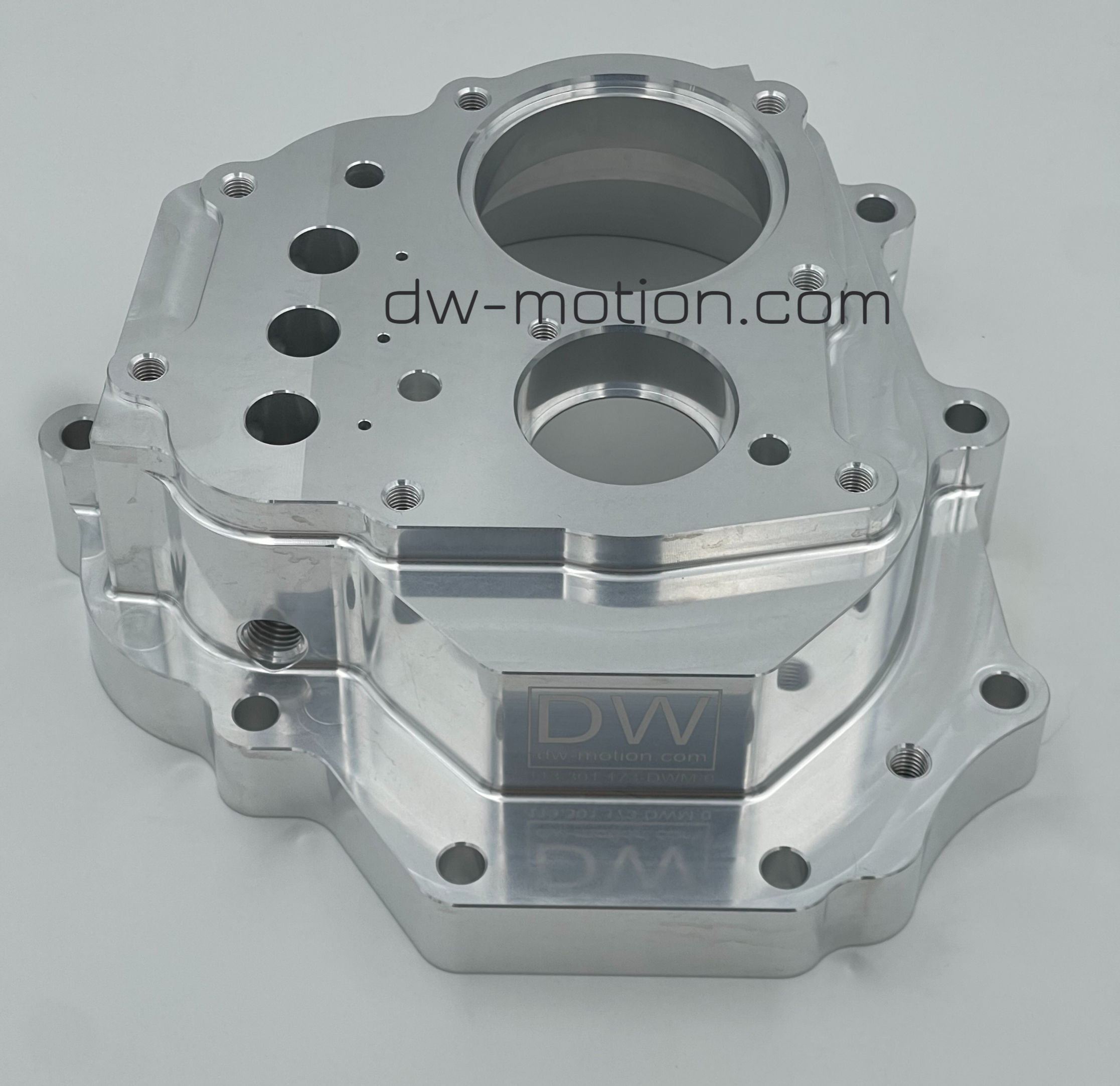

Features

• industrial grade aluminum is much stronger and durable than VW original casts

• fully machined for 113 gearboxes (Bus T1, Bug, Karmann, Type 3, Thing /Type 181) with 25mm mainshaft

• Oil inlet feed (M12x1.5mm) to support oiling of the mainshaft bearing and 4th gear

• built in 4th gear half circle oil deflector

• improved industrial grade pinion needle bearing to support higher load capacity

• all function relevant dimensions are machined according to VW original manufacturer tolerances, 1:1 replacement for the no longer available VW parts

• Swiss engineered: unique simplified design to reduce machining time, while the additional material improves the overall strength

• Swiss manufactured: according to ISO 9001 and 13485 standards




Includes

• 1 pc Gear Carrier

• 5 pc M12x1.5 Plug Screw

• 1 pc Pinion Needle Bearing with race for 25mm keyed pinion shaft




matching accessories (not included)

• 1x 113.028.002-DWM / 113_311 Thrust Plate Sandwich




matching rebuild parts (not included)

• 1x 113.311.123.A Mainshaft Bearing *

• 3x 111.307.621 Sleeve Detent Spring *

• 3x N.025.667.2 Detent Ball

• 3x 111.307.625 Detent Spring

• 2x 111.307.629 Interlock Segment

• 1x 113.311.375 Race 22 X 30 X 20mm for 22mm splined pinion shaft

*new parts highly recommend for your rebuild, don’t reuse them from your gearbox, all other listed parts can be reused under normal circumstances.
